PFEA112-20 3BSE050091R20 ABB 張力計Millmate帶鋼張力測量系統概述:
ABB張力計Millmate帶鋼張力測量系統具有超高的抗沖擊能力和過載能力,抗疲勞能力,長期穩定性,無可動部件,對現場電氣信號干擾不敏感等特點減少不可預測的故障所造成的軋機停機,提高產量
ABB張力計Millmate帶鋼張力測量系統用于測量板帶張力,以確保板帶張力在加速和減速過程中在允許范圍內保持恒定。壓頭安裝在導向輥的兩端。一套完整的系統包含
兩只abb測力壓頭
用于給壓頭供電和信號處理的控制單元abb測力壓頭是根據ABB的專利一磁致彈性技術，也就是壓磁原理制造的。控制單元向壓頭提供激磁電源，處理由壓頭輸出信號并將測量值傳輸給外接系統。與其它系統通訊的方式可以是模擬量輸出，高速現場總線等。PFEA111 / PFEA112控制單元可以由觸摸鍵進行設置及調試。由于擁有友好的用戶界面而非常易于實現這些功能。測量值在PFEA111 / PFEA112顯示，通過模擬量輸出與外部顯示或其他外圍設備通訊。狀態或報警信息在PFEA111/ PFEA112控制單元上顯示或經ProfisBus DP(僅對PFEA112有效)輸出。

PFEA112-20

各種應用的張力控制器共有三種型號，每個型號的性能與功能水平各有不同。所有三種型號都配備多語言數字顯示器和功能按鍵。功能按鍵被用于設置不同的參數并且檢查張力測量系統的狀態。2×16位數字 顯示器可以顯示和信號、差信號或各個壓頭的信號。所有三個型號分別都有兩種安裝方式，包括標準導軌式安裝和適用于更惡劣環境中的封閉式安裝IP65。

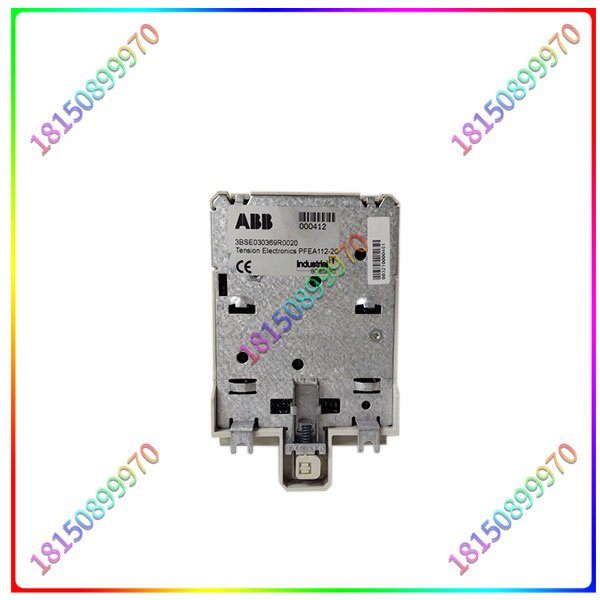

PFEA112-20

PFEA112-20 3BSE050091R20 ABB Tensiometer Millmate Strip tension Measurement System Overview:
The ABB Tensiometer Millmate strip tension measuring system features ultra-high impact and overload resistance, fatigue resistance, long-term stability, no moving parts, and insensitivity to field electrical signal interference to reduce mill shutdowns caused by unpredictable failures and increase production
The ABB Tensiometer Millmate Strip tension measuring system is used to measure strip tension to ensure that strip tension remains constant within the allowable range during acceleration and deceleration. The indenter is installed at both ends of the guide roller. A complete system contains
Two abb force measuring heads
The control unit for powering and signal processing the abb force measuring indenter is based on ABB’s patented magnetoelastic technology, which is the piezomagnetic principle. The control unit provides excitation power to the indenter, processes the output signal from the indenter and transmits the measured value to the external system. Communication with other systems can be analog output, high-speed fieldbus, etc. The PFEA111 / PFEA112 control unit can be set up and debugged by touch keys. These features are very easy to implement due to the friendly user interface. The measured values are displayed in the PFEA111 / PFEA112 and communicate with external displays or other peripherals via analog output. Status or alarm information is displayed on the PFEA111/ PFEA112 control unit or output via the ProfisBus DP(valid for PFEA112 only).
There are three types of tension controllers for various applications, each with a different level of performance and functionality. All three models are equipped with multilingual digital displays and function keys. Function keys are used to set different parameters and check the status of the tension measuring system. The 2×16-bit digital display can display sum signals, difference signals, or signals from individual indenters. All three models are available in two mounting options, including standard rail mounting and enclosed mounting IP65 for harsher environments.

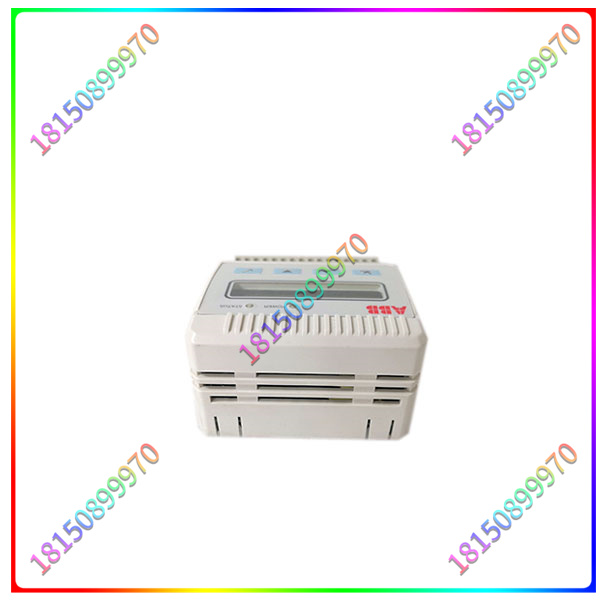

PFEA112-20
