IC697CPM790是一款90-70系列可編程邏輯控制器(PLC) CPU。該CPU是一個單槽寬模塊，專門用于關鍵應用，如緊急關機系統，消防，燃氣和其他應用。該CPU支持三重媒體冗余(TMR)，通過合并獨立的C程序來啟用自動測試例程。

IC697CPM790具有1mb的電池支持內存，可通過使用梯形圖編程語言配置的用戶程序使用高達512KB的內存。當配置為單工模式時，該CPU支持多達12K的任意組合的離散輸入和輸出點;2048個離散輸入和2048個離散輸出。同樣，IC697CPM790能夠處理高達8K的模擬輸入和輸出，在單工模式和1024個投票模擬輸入下操作時的任何組合。它配備80486DX2微處理器，時鐘速度為64 MHz。該CPU具有相對較快的掃描速度，每個布爾函數0.4微秒，適合在關鍵應用中使用。

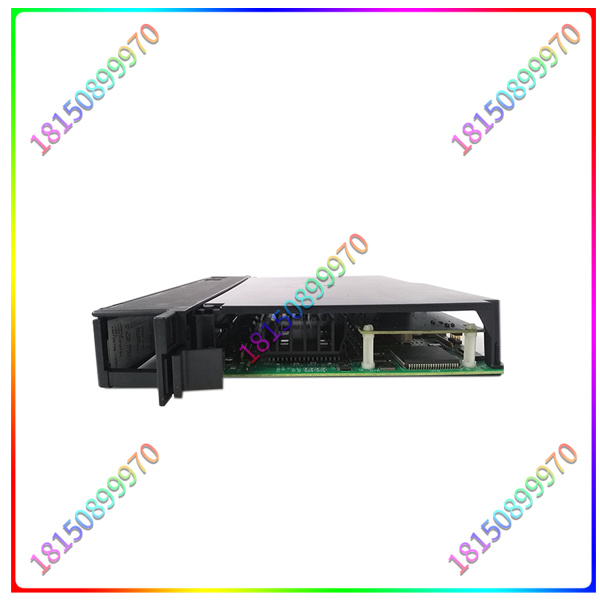

IC697CPM790-GD

IC697CPM790支持三重模塊冗余(TMR)，用于允許系統沒有停機的機會。這個TMR設置基本上由三個PLC機架組成，每個機架有一個(1)IC697CPM790 CPU，三個天才I/O總線，以及三個輸入傳感器和三個輸出負載。

IC697CPM790帶有一個(1)15針sub-D連接器，允許與RS485兼容設備通信。使用RS-422/RS-485到RS-232轉換器(部件號為IC690ACC900)或RS-232到RS-422迷你轉換器(部件號為IC690ACC901)，可以建立其他形式的通信，例如連接到編程計算機。

IC697CPM790可編程控制器CPU也適用于關鍵的工業和商業安全相關應用，如消防和氣體相關應用以及ESD或緊急關閉系統。它使用Windows或MS-DOS軟件編程，能夠通過機架式背板與安裝在同一PLC系統中的I/O模塊和智能選件模塊進行通信。IC697CPM790可編程控制器CPU不能運行，除非包含一個獨立的C程序作為CPU加載的應用程序的一部分。

IC697CPM790可編程控制器CPU必須與獨立的C程序一起使用，用于操作TMR或三重模塊冗余以及自動測試和操作例程。這個CPU有1mb的電池支持內存，最高512 KB的內存可用于梯形圖程序。IC697CPM790可編程控制器CPU可以在任何混合中處理多達12,000個離散輸入和輸出，只要輸入和輸出都處于單純形模式，它可以處理多達2048個離散輸入和多達2048個離散輸出。該CPU的其他功能包括可配置的程序和數據存儲器，4個狀態指示燈led，密碼控制的機器訪問，3位操作模式控制開關，以及電池支持的日歷時鐘。

IC697CPM790-GD

The IC697CPM790 is a 90-70 series Programmable Logic controller (PLC) CPU. The CPU is a single slot wide module designed for critical applications such as emergency shutdown systems, fire fighting, gas and other applications. The CPU supports triple media redundancy (TMR), enabling automated test routines by merging separate C programs.

The IC697CPM790 has 1mb of battery-supported memory and can use up to 512KB of memory through user programs configured using the ladder diagram programming language. When configured in simplex mode, the CPU supports any combination of discrete input and output points up to 12K; 2048 discrete inputs and 2048 discrete outputs. Similarly, the IC697CPM790 is capable of handling up to 8K analog inputs and outputs, any combination when operating in simplex mode and 1024 voting analog inputs. It is equipped with an 80486DX2 microprocessor with a clock speed of 64 MHz. The CPU has a relatively fast scan speed of 0.4 microseconds per Boolean function, making it suitable for use in critical applications.

The IC697CPM790 supports Triple module redundancy (TMR), which is used to allow the system to have no chance of downtime. This TMR setup basically consists of three PLC racks, each with a (1)IC697CPM790 CPU, three genius I/O buses, as well as three input sensors and three output loads.

The IC697CPM790 comes with a (1) 15-pin sub-D connector that allows communication with RS485 compatible devices. Using RS-422/RS-485 to RS-232 converters (part number IC690ACC900) or RS-232 to RS-422 mini-converters (part number IC690ACC901), other forms of communication can be established, such as connecting to a programming computer.

The IC697CPM790 programmable controller CPU is also suitable for critical industrial and commercial safety-related applications such as fire and gas related applications and ESD or emergency shutdown systems. It is programmed using Windows or MS-DOS software and is capable of communicating with I/O modules and smart option modules installed in the same PLC system via a rack-mounted backplane. The IC697CPM790 Programmable controller CPU cannot run unless a separate C program is included as part of the application loaded by the CPU.

The IC697CPM790 programmable controller CPU must be used with a separate C program for operating TMR or triple module redundancy and automated test and operation routines. This CPU has 1mb of battery-supported memory, with up to 512 KB of memory available for ladder diagram programs. The IC697CPM790 programmable controller CPU can process up to 12,000 discrete inputs and outputs in any mix, and it can process up to 2048 discrete inputs and up to 2048 discrete outputs as long as both inputs and outputs are in simplex mode. Additional features of the CPU include configurable program and data storage, 4 status indicator leds, password-controlled machine access, a 3-bit operating mode control switch, and a battery-supported calendar clock.

IC697CPM790-GD
