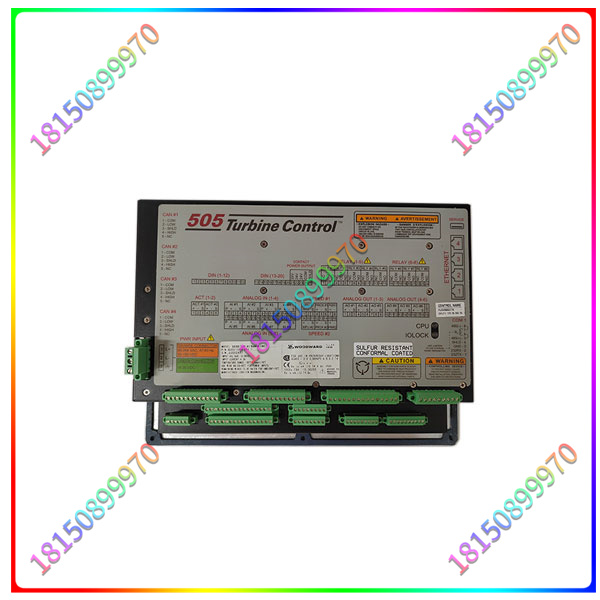

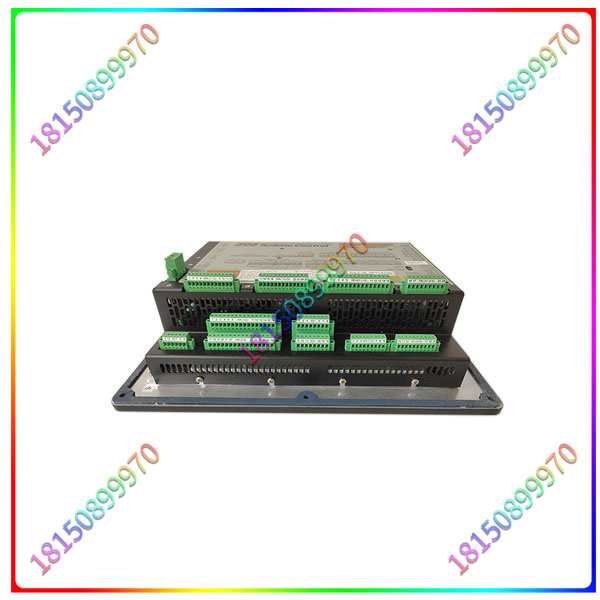

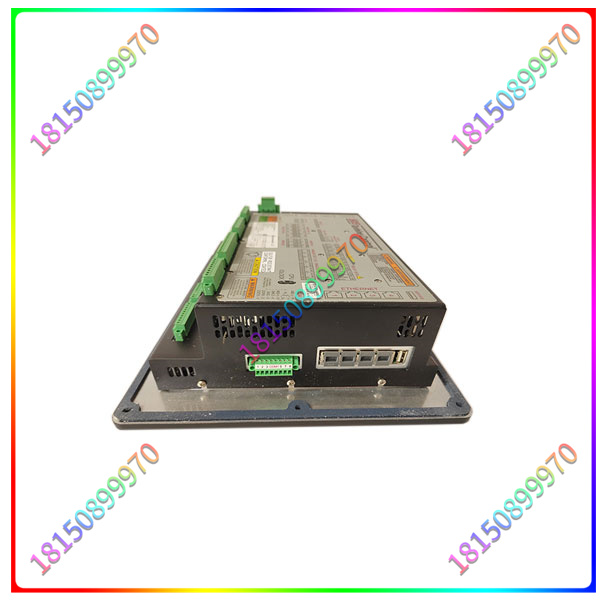

Woodward 505數字控制器 8200-1300用于汽輪機

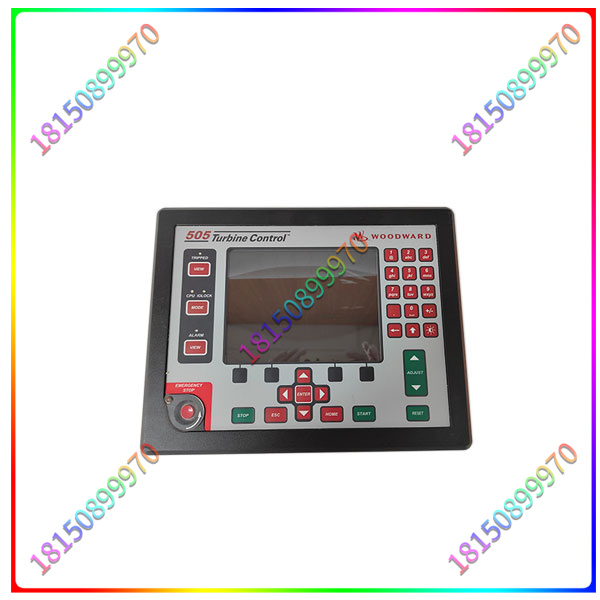

8200-1300,woodward 505是一種將可現場配置的汽輪機控制裝置和操作員控制面板 (OCP) 合為一體的裝置。505 的前面板上有一個綜合的圖形化操作員控制面板顯示屏和鍵盤。該顯示屏可用于對 505 配置，進行在線程序調整和操作汽輪機/系統。容易理解的說明可讓操作員在汽輪機運行期間隨時查看實際值和設定值。為符合 ATEX/IECEx 認證要求，505 數字控制器應安裝在編碼為 Ex nA 的機殼內，可提供低 IP54 的進入防護。安裝人員應確保終安裝位置處的高環境空氣溫度不超過 +70? 的額定溫度。不應將 505 控制器安裝在超過 IEC 60664-1 規定的“2 級污染”的區域中。在正常操作中，不應讓人能在不使用工具的情況下接觸到機殼內部。

件號選擇

8200-1300 低壓直流電（直流 18–32 V）標準合規性

8200-1301 交流/直流電（交流 88–132 V 或直流 90–150 V）

8200-1302 船用/ATEX 合規性低壓直流電（直流 18–32 V）
8200-1300

8200-1300

該 505 控制器設計用于控制單執行機構或雙（分程）執行機構汽輪機（抽汽式汽輪機需要使用 505XT 版本）。505 可現場編程，這樣可以將一個單獨的設計用于許多不同的控制應用場合，能夠降低和縮短交付時間。它采用菜單驅動軟件，以引導現場工程師根據具體的發電機或機械驅動應用對該控制器進行編程。可將 505 配置作為獨立裝置運行，也可配置為與電廠的分布式控制系統一起運行。8200-1300 505 控制器具有五個能夠影響進入汽輪機的進汽流量需求的 PID 控制器：轉速/負荷 PID 控制器、輔助 PID 控制器、輔助 2 PID 控制器，和串級 PID控制器。根據 505 的配置，這些 PID 互相有不同的交互。要完全了解 PID關系，請參照本章中稍后列出的各框圖?？商峁┮粋€附加的 PID 作為分離的控制環路，該環路是可選的，可用于驅動可能需要的任何單環路輔助控制（如密封氣、壓蓋密封件，或潤滑油壓力環路）的獨立模擬輸出信號（即不是驅動蒸汽閥）。當使用隔離 PID 控制時，建議為配置為“隔離 PID 要求”的模擬輸出通道選擇“啟用回讀故障”選項。如果檢測到輸出電路中的故障，這會觸發 505 中的報警。默認情況下，不將模擬輸出通道配置為在輸出電路出現故障時產生報警。505 驅動一或兩個汽輪機節流閥，用以一次控制一個汽輪機參數，且如果需要，可基于其他參數限制汽輪機運行。這一受到控制的參數通常為轉速（或負荷），但是，可利用505 控制或限制：汽輪機入口壓力或流量、排汽壓力（背壓）或流量、級壓力、發電機的功率輸出、電廠輸入和/或輸出水平、壓縮機入口或排出壓力或流量、機組/電廠頻率、過程溫度，或任何其他與汽輪機相關的過程參數。

8200-1300

Woodward 505 Digital Controller (new) 8200-1300 for steam turbines

The 8200-1300,woodward 505 is a combination of a field-configurable steam turbine control unit and an operator control panel (OCP). The 505 has a comprehensive graphical operator control panel display and keyboard on the front panel. The display can be used for on-line program adjustment and turbine/system operation on the 505 configuration. Easy-to-understand instructions allow the operator to view actual and set values at any time during turbine operation. To meet ATEX/IECEx certification requirements, the 505 digital controller shall be installed in a case coded Ex nA, providing low IP54 entry protection. The installation personnel shall ensure that the high ambient air temperature at the final installation location does not exceed the rated temperature of +70?. 505 controllers should not be installed in areas that exceed “Level 2 contamination” as defined by IEC 60664-1. During normal operation, people should not be able to access the inside of the housing without using tools.

Item number selection

8200-1300 Low voltage direct current (DC 18-32 V) standard compliance

8200-1301 AC/DC (88-132 V AC or 90-150 V DC)

8200-1302 Marine /ATEX Compliance Low voltage DC (DC 18-32 V)
8200-1300.

The 505 controller is designed to control single or double (split) actuator turbines (the 505XT version is required for extraction turbines). The 505 is field programmable, which allows a single design to be used for many different control applications, reducing and shortening delivery times. It uses menu-driven software to guide field engineers in programming the controller for a specific generator or mechanical drive application. The 505 configuration can be configured to operate as a stand-alone unit or in conjunction with the distributed control system of the power plant. The 8200-1300 505 controller has five PID controllers that can affect the demand for inlet flow into the turbine: the speed/load PID controller, the auxiliary PID controller, the auxiliary 2 PID controller, and the cascade PID controller. Depending on the 505 configuration, these Pids interact differently with each other. To fully understand the PID relationship, refer to the block diagrams listed later in this chapter. An additional PID is available as a separate control loop, which is optional and can be used to drive an independent analog output signal for any single-loop auxiliary control that may be required (i.e. not to drive the steam valve), such as sealing gas, gland seals, or oil pressure loops. When using isolated PID control, you are advised to select the Enable Read Back Fault option for the analog output channel that is configured as Isolated PID Requirement. If a fault in the output circuit is detected, this triggers an alarm in 505. By default, the analog output channel is not configured to generate an alarm when the output circuit fails. The 505 drives one or two turbine throttle valves to control one turbine parameter at a time and, if necessary, to restrict turbine operation based on other parameters. This controlled parameter is usually speed (or load), however, 505 can be used to control or limit: Turbine inlet pressure or flow, exhaust pressure (back pressure) or flow, stage pressure, generator power output, plant input and/or output level, compressor inlet or discharge pressure or flow, unit/plant frequency, process temperature, or any other process parameter associated with the turbine.
