關于：

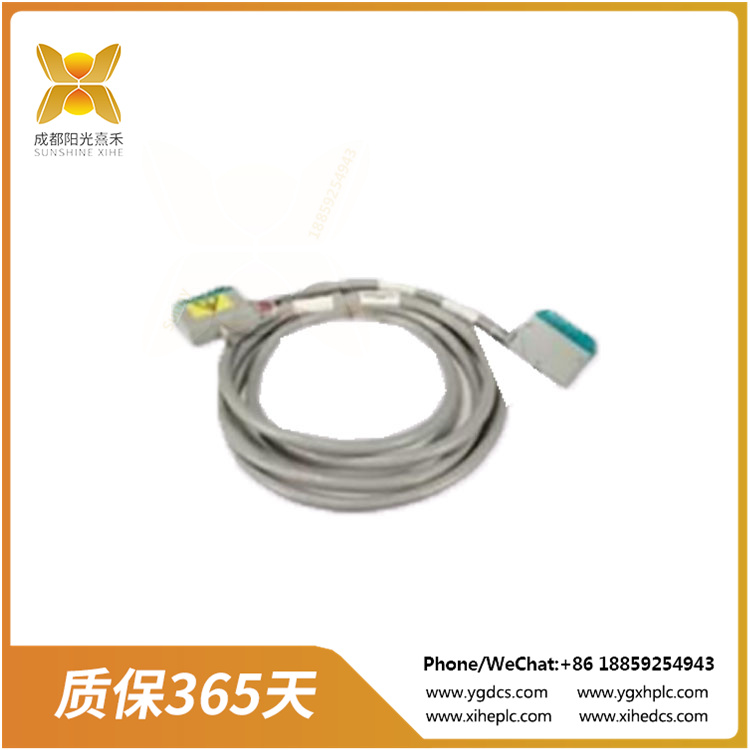

Triconex 4000093-320 電纜組件
尺寸 ：29x26x20厘米
重量 4.07 千克
總線系統和 配電
蝕刻了三個三份總線系統 在機箱背板上：TriBus， I/O 總線和通信總線。 TriBus由三個獨立的串行鏈路組成，它們在25 兆比特每秒。三通車 同步主處理器 掃描開始。然后每個主要 處理器將其數據發送到其上游 和下游鄰居。

電纜組件是用于連接不同電子設備系統或子系統。它由各種絕緣線、屏蔽線和電連接器組成。隨著寬電纜元件在通信領域的應用、電氣穩定性要求、服務電纜元件的壽命和耐環境性越來越高.目前，普遍的使用的電纜組件是兩端的連接器，中間電纜，電纜和連接器是連接的通過壓接、安裝或焊接，并覆蓋熱縮套管或注塑成型保護。現在讓我們看看如何安裝它。

組裝電纜組件主要有三種方法:
直接煌接式:電纜內導體和連接器內導體;煌接連接到連接器外導體的半剛性電纜。需要特殊的裝配工具。優點:1.連接線可以好。2、焊接結構剛度高，完整性好。3.焊接方法種類繁多，焊接工藝適用性廣，比較容易寫實。壓接式:電纜屏蔽層是壓接套管，用特殊的壓接夾緊固定在連接器上，結構簡單，安裝速度快，一致性好，可靠性高，結構適用于柔性電纜。

什么是Tricon？
Tricon是一款先進的控制器，通過三重模塊化冗余（TMR）架構提供容錯能力。TMR在一個控制系統中集成了三個隔離的并行控制系統和廣泛的診斷功能。該系統使用三分之二的投票來提供高完整性、無差錯、不間斷的流程操作，沒有單點故障。
Tricon 控制器使用三個相同的通道。每個通道與其他兩個通道并行獨立執行控制程序。專門的硬件/軟件投票機制對現場的所有數字輸入和輸出進行鑒定和驗證，而模擬輸入則經過中間值選擇過程。

4000093-320

Triconex 4000093-320 Cable assembly
Size: 29x26x20 cm
It weighs 4.07 kg
Bus systems and power distribution
Three tripartite bus systems are etched on the chassis backplane: TriBus, I/O bus, and communication bus. TriBus consists of three separate serial links that are at 25 megabits per second. Three traffic synchronous master processor scan begins. Each major processor then sends its data to its upstream and downstream neighbors.

Cable assemblies are used to connect different electronic device systems or subsystems. It consists of various insulated wires, shielded wires and electrical connectors. With the application of wide cable components in the field of communication, electrical stability requirements, service cable components life and environmental resistance are getting higher and higher. At present, the commonly used cable assembly is the connector at both ends, the intermediate cable, the cable and the connector are connected by crimping, mounting or welding, and covered with heat shrink sleeve or injection molding protection. Now let’s see how to install it.

There are three main ways to assemble cable assemblies:
Direct brilliant connection: cable inner conductor and connector inner conductor; A semi-rigid cable successfully connected to the outer conductor of the connector. Special assembly tools are required. Advantages :1. The cable can be good. 2, the welding structure has high rigidity and good integrity. 3. There are many kinds of welding methods, and the welding process has wide applicability and is relatively easy to be realistic. Crimping type: The cable shield layer is crimping sleeve, fixed on the connector with a special crimping clamp, simple structure, fast installation speed, good consistency, high reliability, structure suitable for flexible cables.

What is Tricon?
Tricon is an advanced controller that provides fault tolerance through a triple modular redundancy (TMR) architecture. TMR integrates three isolated parallel control systems and a wide range of diagnostic functions in a single control system. The system uses two-thirds voting to provide high integrity, error-free, uninterrupted process operation with no single point of failure.
The Tricon controller uses three identical channels. Each channel executes the control program independently in parallel with the other two channels. A dedicated hardware/software voting mechanism identifies and validates all digital inputs and outputs in the field, while analog inputs go through an intermediate value selection process.

如果您需要查詢或購買，請將產品型號發送到我的電子郵件或直接致電我

銷售經理:何經理

手機: + 86 18005021035

郵箱:?18005021035@163.com

與成都陽光熹禾合作我們提供一流的服務，實現更快的速度，交付多樣化的零件!

1.在24小時內及時回復您

2.交貨時間快

3.最好的服務，合理的價格

4.在生產線上工作多年，有良好的口碑

▲更多相關型號:REF615E_1G HBFGDAAHNDCCBNA11G 先進的站級間通信功能 用于環形網狀配電網絡或輻射網絡保護

為什么選擇我們？
*國外直接采購，正品行貨，價格優惠，售后保修，型號齊全，優勢庫存
*所有備件的質保期均為1年，經過專業測試認證
*如果您需要訂購產品超過1件，請與我們聯系，我們可以為您提供折扣
*我們僅采用順豐快遞方式遞送備件
*如果您發現其他供貨商為相同產品提供更為低廉的價格，我們也愿意參照其價格向您提供進一步的折扣
如果還有其他任何問題，請隨時與我們聯系
*請讓我們知道您有任何，備品，備件的需要，我們可以給您進一步的援助，我們等候您的詢盤
*成都陽光熹禾做到信譽，信任，信服
*一樣的產品，不一樣的是價格與服務
*您的選擇，就是我們的前進的動力
