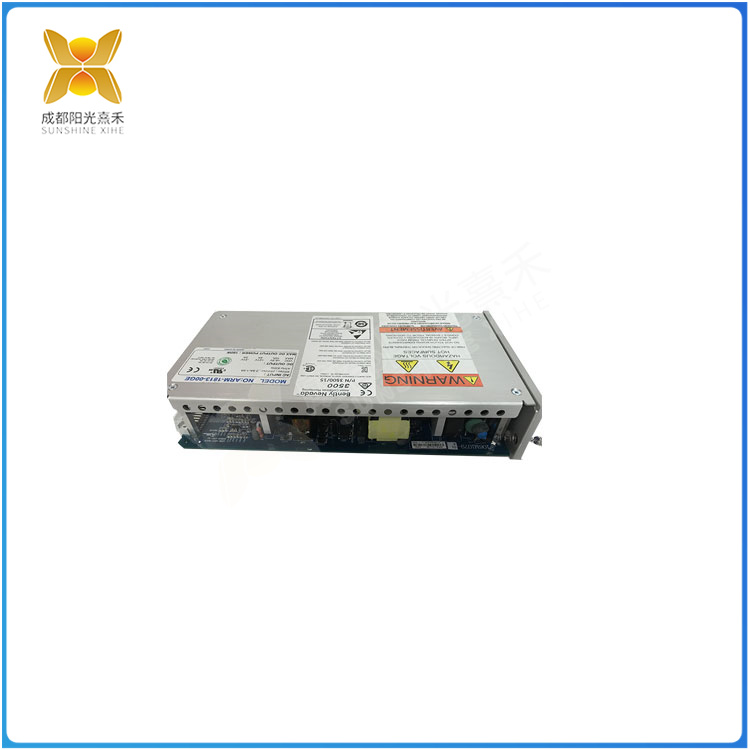

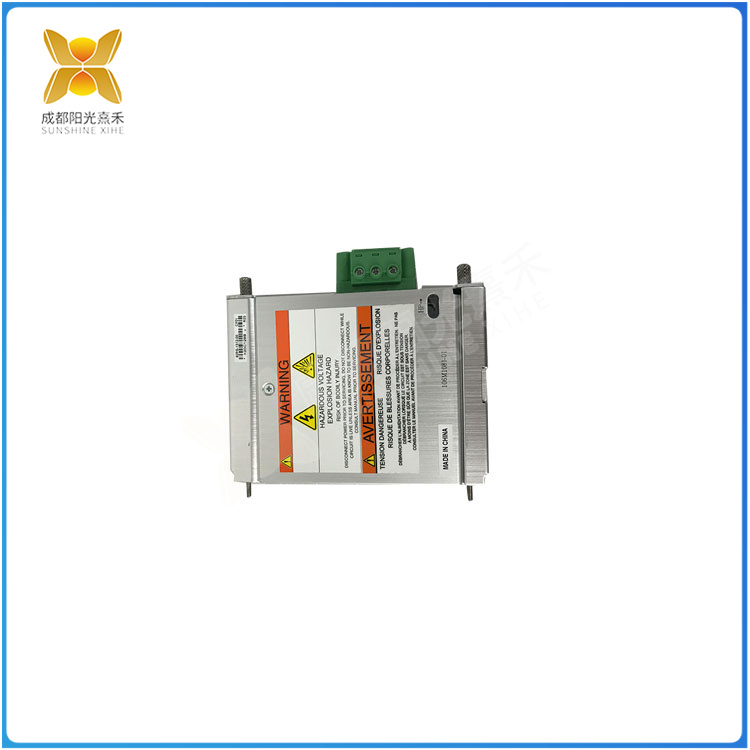

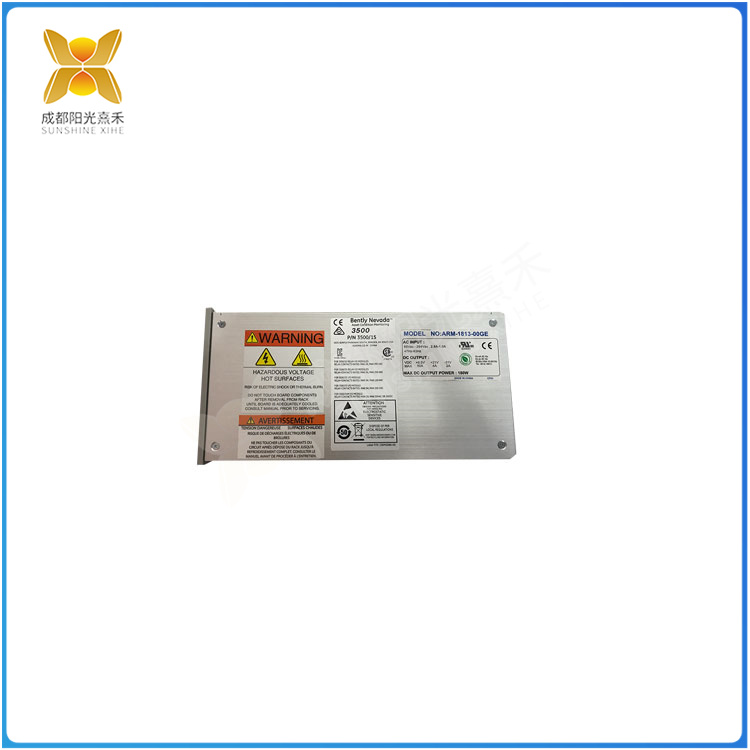

350015-05-05-00 電源模塊 電源模塊是一種可以直接貼裝在印刷電路板上的電源供應器，其特點是可為專用集成電路（ASIC）、數字信號處理器 (DSP)、微處理器、存儲器、現場可編程門陣列 (FPGA) 及其他數字或模擬負載提供供電。一般來說，這類模塊稱為負載 (POL) 電源供應系統或使用點電源供應系統 (PUPS)。350015-05-05-00 電源模塊 電源模塊是一種電源轉換裝置，可以將交流電和直流電進行相互轉換，按照轉換方式一般會分為AC-DC和DC-DC兩種模式。一個完整的電源模塊一般是由輸入整流濾波器、單片開關電源、高頻變壓器、漏級鉗位保護電路、光耦反饋電路、輸出整流濾波器、偏置電路等部分組成。由于電源模塊具有小體積、高集成度、高性價比和最佳性能指標等特點，它只需要最簡的外圍電路，配上少量分立式元件即可使用。當產品設計需更改時，只需并聯或替換電源模塊即可。

350015-05-05-00

因此，350015-05-05-00 電源模塊 電源模塊廣泛應用于交換設備、接入設備、移動通訊、微波通訊以及光傳輸、路由器等通信領域和汽車電子、航空航天等行業。350015-05-05-00 電源模塊 電源模塊的優點包括：設計簡單：只需選擇適合的電源模塊，配上少量分立元件即可使用。模塊內部高集成電路，使設計更加緊湊，供應商還可以提供專業的技術支持和系統解決方案。節省成本和時間：電源模塊有多種輸入輸出選擇，并且可以重復加或交叉加，構成積木式組合電源，從而實現多路輸入輸出。相比分立式，調試更加簡單安全，使設計應用大大簡化，縮短開發時間。高可靠性：模塊一般采用自動化工藝，保證品質和可靠性。而分立式方案就較難進行深入的測試。高功率、密度。

350015-05-05-00

350015-05-00 Power Module is a power supply module that can be directly mounted on a printed circuit board. Its characteristic is that it can provide power for dedicated integrated circuits (ASICs), digital signal processors (DSPs), microprocessors, memory, field programmable gate arrays (FPGAs), and other digital or analog loads. Generally speaking, these types of modules are referred to as load (POL) power supply systems or point of use power supply systems (PUPS). 350015-05-00 Power Module The power module is a power conversion device that can convert AC and DC power to each other. According to the conversion method, it is generally divided into AC-DC and DC-DC modes. A complete power module is generally composed of input rectifier filter, single-chip switching power supply, high-frequency transformer, leakage clamp protection circuit, optocoupler feedback circuit, output rectifier filter, bias circuit, and other parts. Due to its small size, high integration, cost-effectiveness, and optimal performance indicators, the power module only requires the simplest peripheral circuit and a small number of discrete components to be used. When product design needs to be changed, simply connect or replace the power module in parallel.

350015-05-05-00

Therefore, the power module of 350015-05-00 power module is widely used in communication fields such as switching equipment, access equipment, mobile communication, microwave communication, optical transmission, routers, as well as industries such as automotive electronics and aerospace. The advantages of the power module of 350015-05-00 include: simple design: only select a suitable power module and use it with a small number of discrete components. The high integration circuit inside the module makes the design more compact, and the supplier can also provide professional technical support and system solutions. Cost and time saving: The power module has multiple input and output options, and can be repeatedly added or cross added to form a modular combination power supply, thereby achieving multi-channel input and output. Compared to split type, debugging is simpler and safer, greatly simplifying design applications and shortening development time. High reliability: Modules generally adopt automated processes to ensure quality and reliability. However, the split type scheme is difficult to conduct in-depth testing. High power and density.
