Woodward 8200-1300 是一種Woodward 8200-1300 是一種數字調速器，專為控制蒸汽輪機設計。它通過圖形界面和鍵盤對渦輪機進行調整并與其通信。此外，它具有 Modbus 通信端口，可以方便地進行配置和外部通信。
Woodward 8200-1300 調速器主要用于控制蒸汽輪機的轉速，通過圖形界面和鍵盤對渦輪機進行調整并與其通信。此外，它具有 Modbus 通信端口，可以方便地進行配置和外部通信。
它具有多種功能，如熱啟動和冷啟動的自動啟動順序、具有溫度輸入選項、三速帶上的臨界速度避免、十個外部報警輸入、十個外部 DI 跳閘輸入、帶有相關 RTC 時間戳的跳閘和警報事件的跳閘指示、雙速度和負載動態、超速跳閘的峰值速度指示等。
該設備還提供三種正常操作模式，包括配置、操作和校準模式。同時，它具有兩個冗余速度輸入，可接受磁性拾取裝置、渦流探頭或接近探頭。另外，它具有模擬輸入（8），可配置為二十七個功能中的任何一個。該設備還有另外 20 個觸點輸入，以及兩個 4-20 mA 控制輸出和八個 C 型繼電器觸點輸出。
，專為控制蒸汽輪機設計。它通過圖形界面和鍵盤對渦輪機進行調整并與其通信。此外，它具有 Modbus 通信端口，可以方便地進行配置和外部通信。
Woodward 8200-1300 調速器主要用于控制蒸汽輪機的轉速，通過圖形界面和鍵盤對渦輪機進行調整并與其通信。此外，它具有 Modbus 通信端口，可以方便地進行配置和外部通信。
它具有多種功能，如熱啟動和冷啟動的自動啟動順序、具有溫度輸入選項、三速帶上的臨界速度避免、十個外部報警輸入、十個外部 DI 跳閘輸入、帶有相關 RTC 時間戳的跳閘和警報事件的跳閘指示、雙速度和負載動態、超速跳閘的峰值速度指示等。
該設備還提供三種正常操作模式，包括配置、操作和校準模式。同時，它具有兩個冗余速度輸入，可接受磁性拾取裝置、渦流探頭或接近探頭。另外，它具有模擬輸入（8），可配置為二十七個功能中的任何一個。該設備還有另外 20 個觸點輸入，以及兩個 4-20 mA 控制輸出和八個 C 型繼電器觸點輸出。

8200-1300

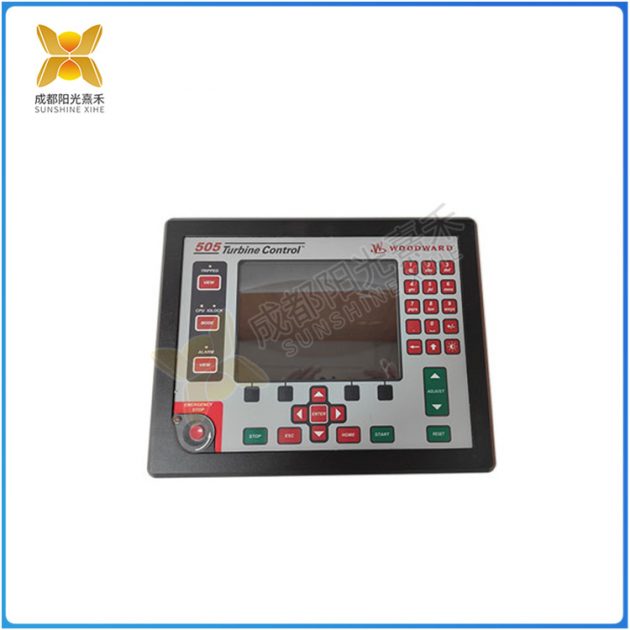

The Woodward 8200-1300 is a digital governor designed specifically for controlling steam turbines. It adjusts and communicates with the turbine through a graphical interface and keyboard. In addition, it has a Modbus communication port for easy configuration and external communication.
The Woodward 8200-1300 governor is mainly used to control the speed of steam turbines, adjust and communicate with the turbine through a graphical interface and keyboard. In addition, it has a Modbus communication port for easy configuration and external communication.
It has multiple functions, such as automatic start sequence for hot and cold starts, temperature input options, critical speed avoidance on the three speed band, ten external alarm inputs, ten external DI trip inputs, trip indication with related RTC timestamps for tripping and alarm events, dual speed and load dynamics, peak speed indication for overspeed tripping, etc.
The device also provides three normal operating modes, including configuration, operation, and calibration modes. At the same time, it has two redundant speed inputs and can accept magnetic pickup devices, eddy current probes, or proximity probes. In addition, it has an analog input (8) that can be configured as any of the twenty-seven functions. The device also has an additional 20 contact inputs, as well as two 4-20 mA control outputs and eight C-type relay contact outputs.
Please note that for the use of the Woodward 8200-1300 governor, it is necessary to follow the operating manual and safety guidelines provided by the manufacturer, ensure that the equipment operates in a suitable environment, and pay attention to power requirements and safety regulations.

8200-1300
