T8448是一種與檢測相關的現場設備之間的主接口，設計用于火災和氣體探測和抑制。每個通道都是可配置的，可以啟用多種現場設備被連接。這些設備包括產生模擬和數字輸入信號，以及需要高達40V數字信號的輸出設備直流。
T8448的每個電源組由雙24V直流電源供電，它們通過VFTA上的二極管“通用”。然后供給供給組內的每個通道。電源電壓通過一個315mA熔斷器饋電到現場。輸入信號(0-20mA)從現場備饋電通過50mA熔斷器有效限制輸入信號。電壓通過輸入的250R電阻發展(高精度0.1%)用于輸入模塊檢測現場設備的地位。輸入模塊40路到VFTA的線纜為在5個10路連接器上終止。40個3路連接器用于字段循環。
T8448的設計考慮了各種應用場景和要求，具有高可靠性、高精度、易于配置等優點，適用于各種工業自動化領域。

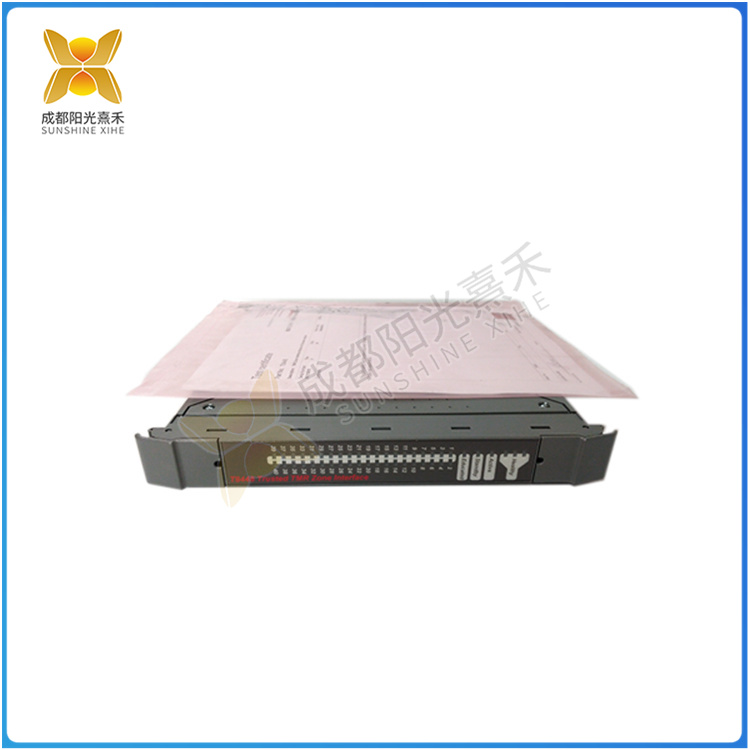

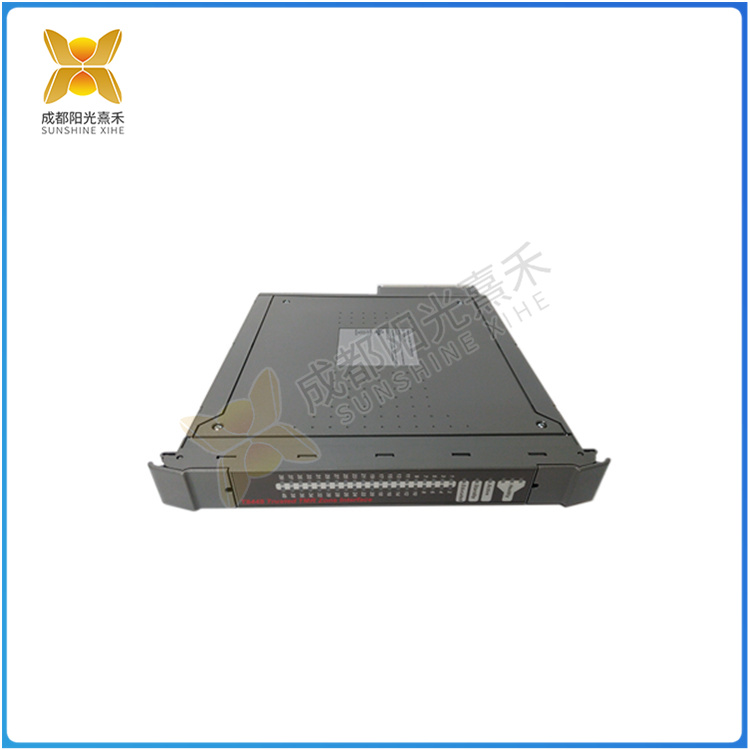

T8448

The T8448 is a primary interface between detection-related field equipment designed for fire and gas detection and suppression. Each channel is configurable and enables multiple field devices to be connected. These devices include the generation of analog and digital input signals, as well as output devices that require up to 40V digital signals.
Each power pack of the T8448 is powered by dual 24V DC power supplies, which are “universal” via diodes on the VFTA. Each channel in the supply group is then supplied. The supply voltage is fed to the site through a 315mA fuse. The input signal (0-20mA) is fed from the field standby to effectively limit the input signal through a 50mA fuse. The voltage is developed through the input’s 250R resistance (precision 0.1%) for the input module to detect the position of the field equipment. Cables from the input module 40 to the VFTA are terminated on five 10-way connectors. 40 3-way connectors for field loops.
The design of the T8448 takes into account various application scenarios and requirements, and has the advantages of high reliability, high precision, easy configuration, etc., which is suitable for various industrial automation fields.

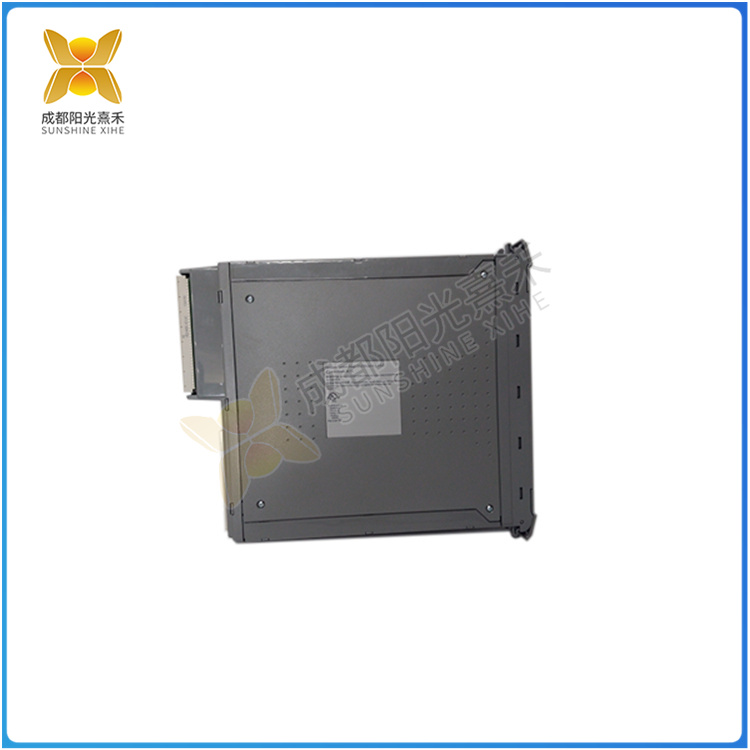

T8448
